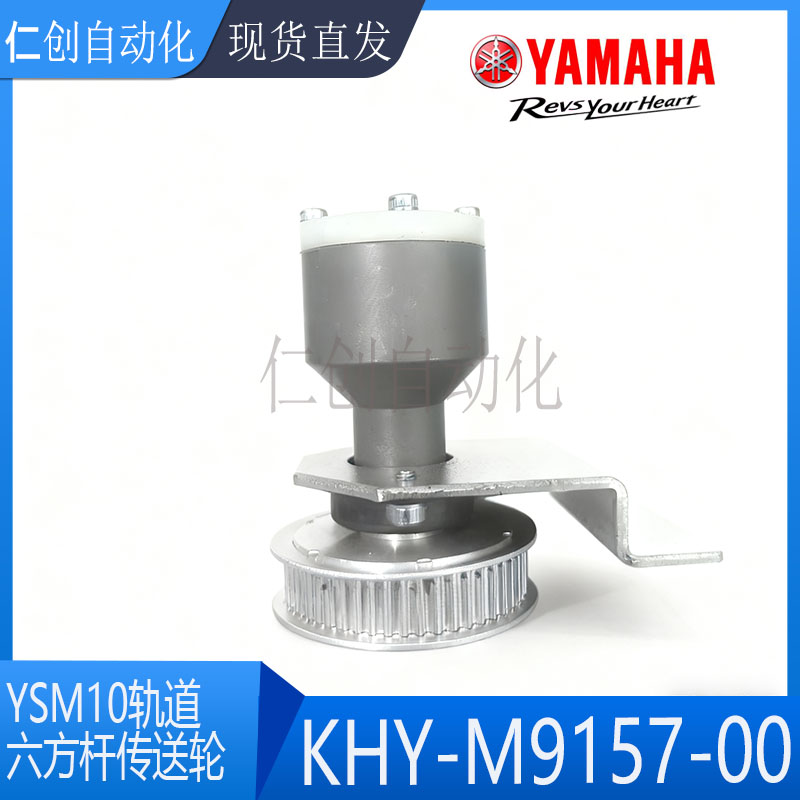

雅馬哈貼片機YSM10軌道六方桿傳送輪KHY-M9157-00

YSM10軌道
NO Parts_No. Parts_Name Q'ty Remarks Compati Revision_No._date
1 KHY-M9117-00 SPLINE 1 1
2 KLW-M911F-A0 SPLINE PULLEY ASSY. 1
3 KG2-M9108-11 COLLAR CONVEYOR 1
4 KGT-M9135-00 PULLEY 1, SPLINE 1
5 91312-03010 BOLT,HEX.SOCKET HEAD 8
6 KKE-M9113-00 BRKT.1,SPLINE 1
7 KKV-M9119-00 SHAFT 1
8 KH2-M9121-00 BEARING 1
9 KGT-M915U-00 PULLEY DRIVE, F 1
10 91312-04005 BOLT,HEX.SOCKET HEAD 2
11 91312-04010 BOLT,HEX.SOCKET HEAD 9
12 92A08-04305 SCREW, SET 2
13 KKE-M9118-00 BRACKET,COLLAR 1
14 KG2-M9108-11 COLLAR CONVEYOR 1
15 KH2-M9121-00 BEARING 1
16 KYB-M913X-00 MOTOR_STEPPING 1 M05 : CV-axis : CVM
17 KMG-M9141-00 PLATE,CV MOTOR 1
18 KMG-M9142-00 BRKT.,MOTOR 1
19 KMG-M9143-00 BELT(312-3GT-6) 1
20 KMG-M9144-00 PULLEY,TIMING 1
21 KHY-M9157-00 SHAFT,MOTOR 1
22 KMC-M915V-00 BRKT.,TENSIONER 1
23 KHW-M9137-00 COLLAR,BRG. 1
24 KMC-M915Y-00 BOLT,THIN HEAD 1
