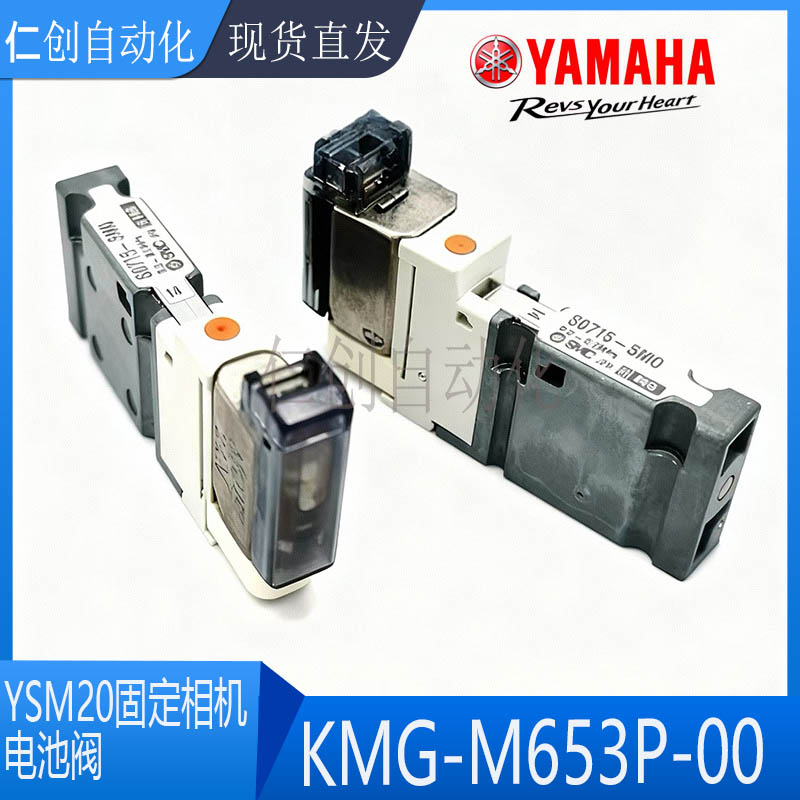

YAMAHA YSM10/20 KMG-M653P-00 S0715-5M0 VALVE MULTI CAM ASSY
NO Parts_No.
Parts_Name
Q_ty Remarks
Compati Revision_No._date
1
KMG-M7300-00 MULTI CAM.ASSY.F
1
<OP> front side installation
2
KMG-M7300-10 MULTI CAM.ASSY.R
1
<OP> rear side installation
3
KLW-M7512-00
COVER,GLASS
1
4
KLW-M7526-00
PLATE,GLASS
4
5
KMG-M653P-00 VALVE MULTI CAM ASSY
1
YV061 : F LIGHT UP (front) / YV062 : R LIGHT UP (rear)
6
KMG-M73C0-00 MULTI CAM.ASSY.
1
7
KMG-M7560-00 SIDE LIGHT ASSY.
1
8
$SC4-M3MA
SPEED CONTROLLER
2
9
90166-02JA04
SCREW, PAN HEAD
8
10
90990-32J005
BOLT,FLANGE
2
11
91312-03020
BOLT,HEX.SOCKET HEAD 2
12
KLW-M66K2-00 HNS,F.MULTI CAM
1
J0706 : in case of [1] (front side installation) : L2200mm
13
KMG-M66K3-00 HNS,R.MULTI CAM
1
J0707 : in case of [2] (rear side installation) : L2200mm
