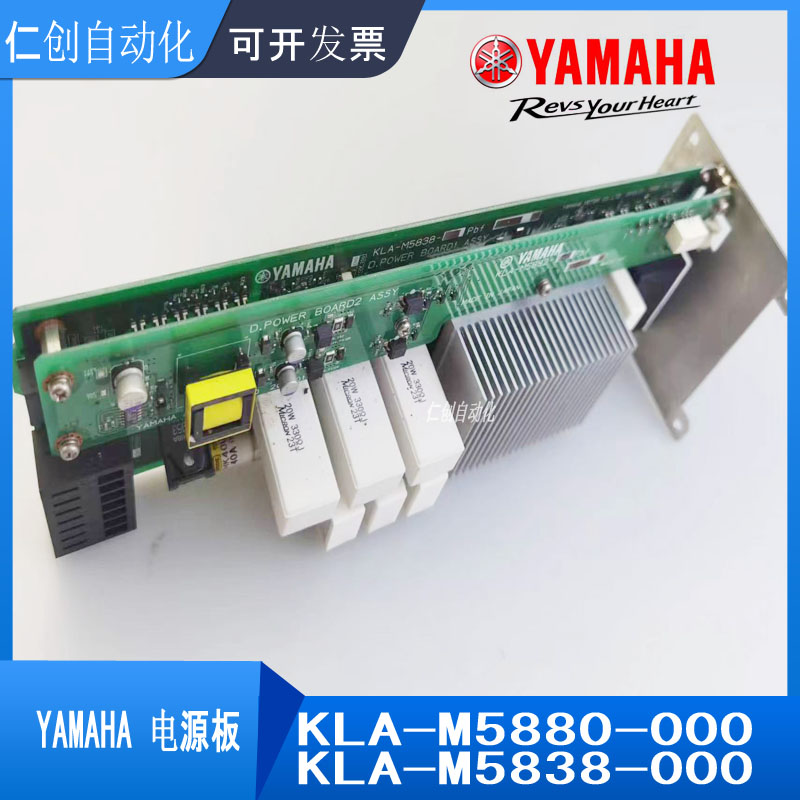

KLA-M5882-000 KLA-M5838-000 YAMAHA電源板D.POWER BOARD ASSY

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 99480-04012 PIN,PARALLEL 2
2 90189-02J126 NUT, HEXAGON 4
3 90440-10J050 CIRCLIP 2
4 91312-03008 BOLT HEX,SOCKET HEAD 4
5 91312-04006 BOLT HEX,SOCKET HEAD 4
6 91312-04008 BOLT HEX,SOCKET HEAD 13
7 91312-05012 BOLT HEX,SOCKET HEAD 4
8 91312-05030 BOLT HEX,SOCKET HEAD 4
9 91312-06012 BOLT HEX,SOCKET HEAD 2
10 91312-06020 BOLT HEX,SOCKET HEAD 4
11 KLF-M3T15-22 STAY,SIDE L 1
12 KLF-M3T15-32 STAY,SIDE R 1
13 KLF-M3T68-00 BRACKET 1
14 KLF-M3T68-10 BRACKET 1
15 KLF-M3T70-51 COVER,FR UPPER 1
16 KLF-M3T78-01 STAY,CLAMP L 1
17 KLF-M3T78-11 STAY,CLAMP R 1
18 KLF-M3T79-01 STAY,CONNECTOR 1
19 KLF-M3T99-00 SCREW,STEP 2
20 KLF-M3T91-00 BASE,CLAMP L 1
21 KLF-M3T91-50 BASE,CLAMP R 1
22 KLF-M3T92-00 LEVER,CLAMP 2
23 KLF-M3T93-00 PIN 2
24 KLF-M3T94-00 DOG,CLAMP L 1
25 KLF-M3T94-50 DOG,CLAMP R 1
26 KLF-M3T96-00 BLOCK 2
27 KLF-M3T97-01 HOOK 2
28 KLF-M3T98-01 PULL ACTION 2
29 KLF-M3T9A-00 CAM FOLLOWER 2
30 KLF-M3TB2-20 STAY,SLOPE L 1
31 KLF-M3TB2-30 STAY,SLOPE R 1
32 KLF-M3TJ1-00 BRKT.,HD CNT.1 1
33 KLF-M3TJ3-10 FRAME,PIN 1
34 KLF-M653R-00 SEN.CUT CLAMP ASSY 2
35 91312-06025 BOLT HEX,SOCKET HEAD 8
36 91312-08016 BOLT HEX,SOCKET HEAD 4
37 KLF-M3TS1-00 COVER,CONNECTOR 1
38 KLF-M3TS2-00 DUCT,CONNECTOR 1
39 KLF-M3TS3-00 DUCT COVER,CONNECTOR 1
40 91312-03006 91312-03006
