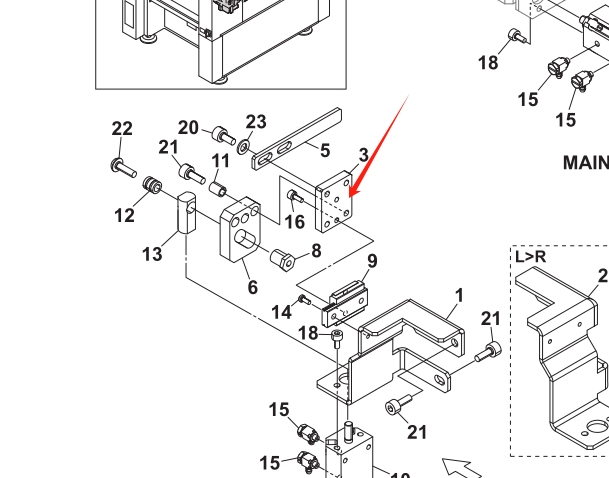

YAMAHA YS24 KKE-M9163-00 BRKT., STOPPER雅馬哈YS24貼片機(jī)軌道主擋板支架

1 KKE-M9161-00 BRKT., CYLINDER
2 KKE-M9162-00 BRKT., CYLINDER
3 KKE-M9163-00 BRKT., STOPPER
4 KKE-M9164-00 BRKT., STOPPER
5 KKE-M9165-00 PLATE, STOPPER
6 KKE-M9167-00 PLATE, STOPPER
7 KKE-M9168-00 PLATE, STOPPER
8 KKE-M9169-00 SHAFT, STOPPER
9 KKE-M916B-00 GUIDE
10 KKE-M653A-00 CYLINDER, MAIN 1 ASSY.
11 KHW-M916C-00 SPACER
12 KHW-M916G-00 COLLAR, JOINT
13 KHW-M916H-00 JOINT, CYL.
14 90990-08J027 SCREW, PAN HEAD
15 $UEF4BU-M3JOINT
16 90112-2AJ006 BOLT HEX. SOCKET HEAD
17 90112-2AJ005 BOLT HEX. SOCKET HEAD
18 91312-03006 BOLT HEX. SOCKET HEAD
19 91312-04006 BOLT HEX. SOCKET HEAD
20 91312-04006 BOLT HEX. SOCKET HEAD
21 91312-04010 BOLT HEX. SOCKET HEAD
MAIN 1 91312-04010 BOLT HEX. SOCKET HEAD MAIN 2-1, 2-2
22 92012-04010 BOLT, BUTTON HEAD MAIN 2-1, 2-2 92012-04012
BOLT, BUTTON HEAD 1 MAIN 1
23 92902-04600 WASHER, PLAIN
24 91312-04012 BOLT HEX. SOCKET HEAD
25 KKE-M653B-00 CYLINDER, MAIN 2-1 ASSY.
26 KKE-M653C-10 CYLINDER, MAIN 2-2 ASSY.
1MFX0146-2009/12/17 KKE-M653C-00
CYLINDER, MAIN 2-2 ASSY.
27 KKE-M9161-10 BRKT., CYLINDER
